Lifting Anchor

Lifting Anchor

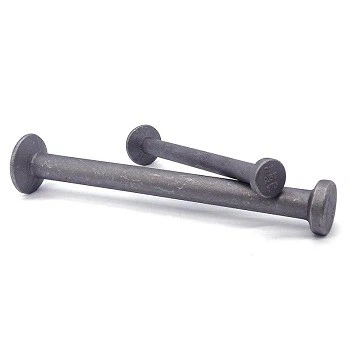

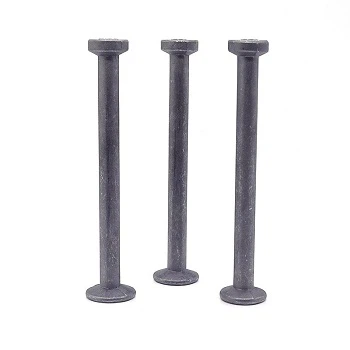

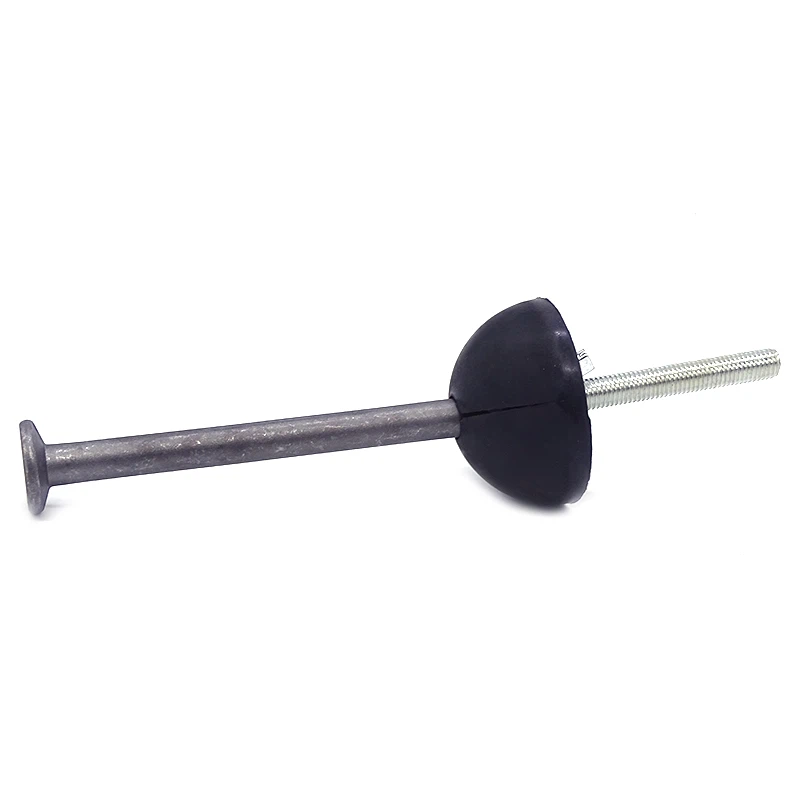

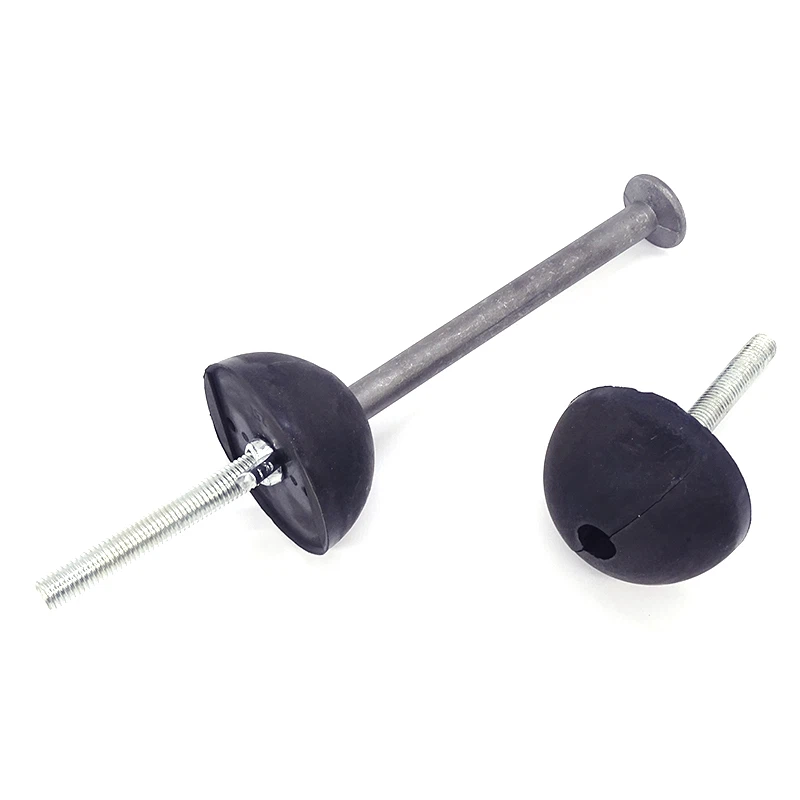

Lifting Anchor is a type of lifting component pre-buried in concrete with a round or hemispherical head design for attaching spreaders (e.g. duckbill clasps, etc.). It provides a reliable lifting point for precast concrete components (e.g. floor slabs, wall panels, beams and columns, etc.) and withstands tensile and shear forces during lifting.
Send Inquiry
Description



USC Lifting Anchor is specially engineered to safely lift precast concrete elements in the most challenging of environments and site conditions.

The Lifting Anchors timeless design comprise of a round steel rod with a foot and head forged using a special impact and abrasion resistant steel.

Ancotec offers a wide range of lifting anchors for all sizes from 1.3T to 20.0T.

The capacity loads are axial with minimum breakage safety factor of 3.





Product Specification





  • Product Material：20MN2A
  • Surface Treatment: sand blasting;Electro galvanizing;hot galvanizing

Specification

Length(Accept Customized)

Load/T

1.3T

55/70/85/120

1.3

2.5T

70/85/100/120/170/240

2.5

4T

120/210/240

4

5T

85/120/170/180/240/340

5

7.5T

100/150/180/300

7.5

10T

150/200/250/300/350

10

15T

200/300/350/400

15

20T

200/340/500

20



Product Feature





High concealment

Only the round head remains exposed after embedding, preserving the component's aesthetics and avoiding interference from protruding structures during subsequent construction.

Convenient embedding

Fixed within the formwork and bound/welded to the reinforcement before concrete pouring, simplifying construction workflows.

Flexible adaptability

Supports multi-angle lifting requirements by switching accessories (e.g., swivel hoist rings, duckbill hooks).

Products Applications





For lifting prefabricated components of assembled buildings



17821799259871new

17821800063918new

17821948802257

17821950455593 1

Production Equipment

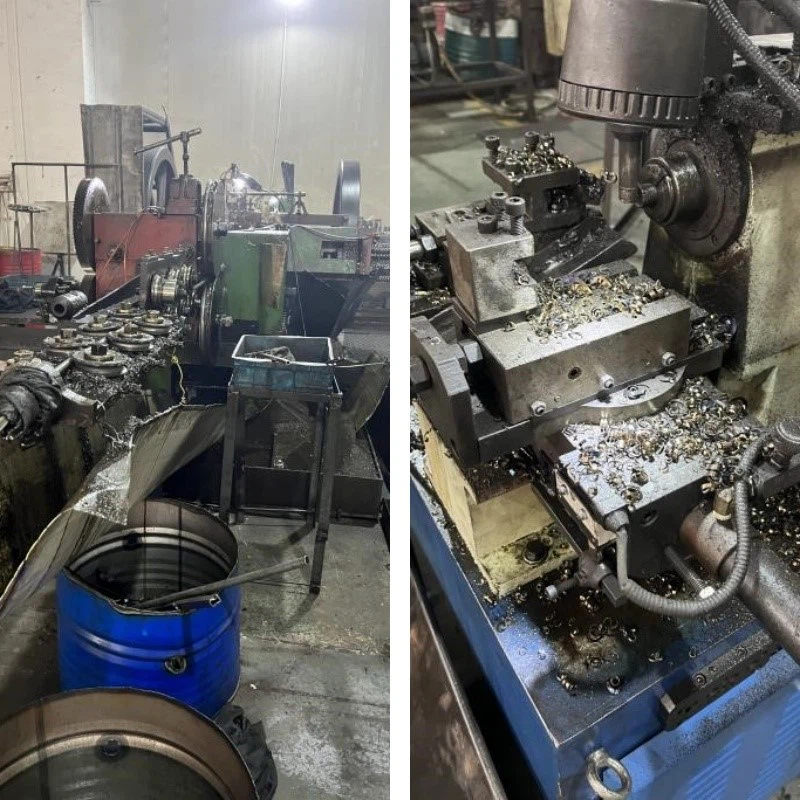

product-800-800
Automatic Cold Header

As shown in the picture is an automatic cold header, raw material transfer, shaping and cutting are done on this machine.

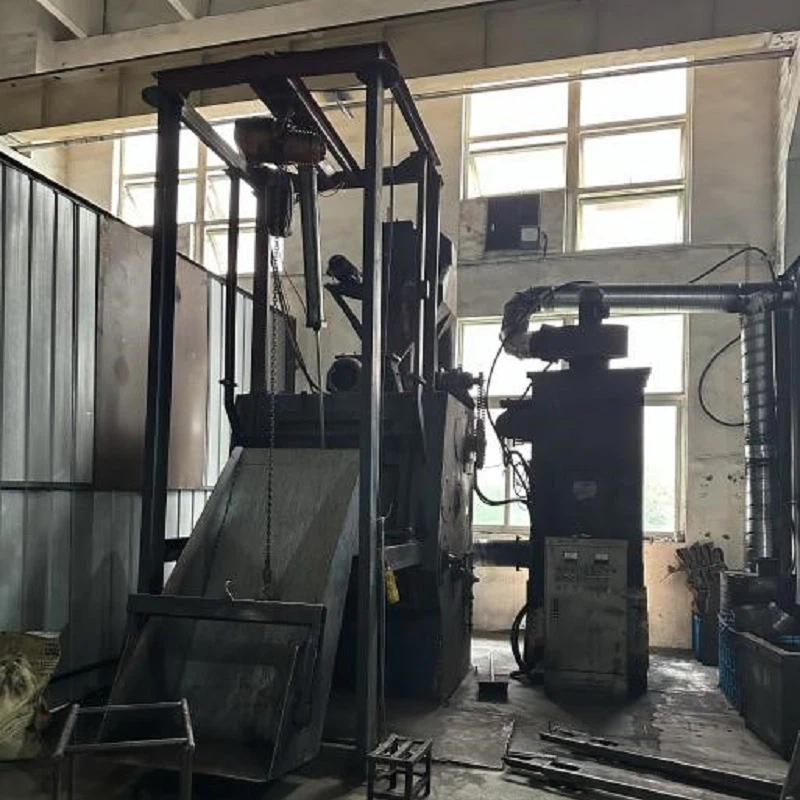

Sand Blasting Machine
Sand Blasting Machine

As shown in the picture is the sand blasting machine, which is used for the surface treatment of the Spherical Head Lifting Anchors. Remove impurities while making the particles evenly adhered to the surface of the Spherical Head Lifting Anchors.

Production Display

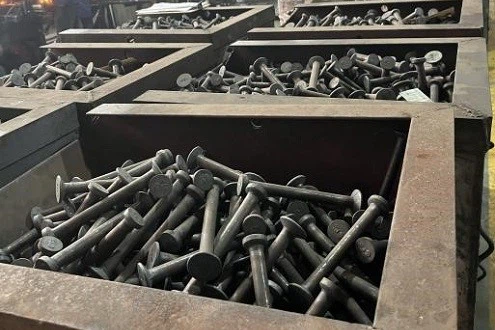

Sandblasted Spherical Head Anchors

Sandblasted Spherical Head Anchors

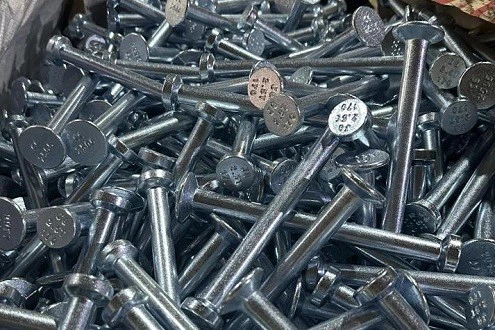

Galvanized Spherical Head Anchors

Galvanized Spherical Head Anchors

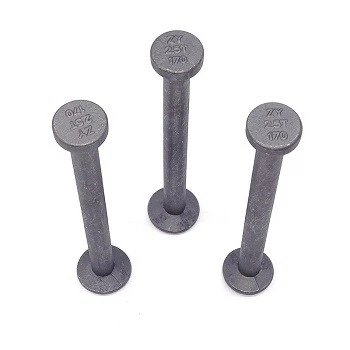

As shown in the picture for galvanized standard Pin Anchor, its special feature is that the specifications are embedded in the head of the Lifting Anchor, this production process is conducive to increase the contact area between it and the Lifting Clutch to enhance the friction, to ensure that the use of solidity and safety.

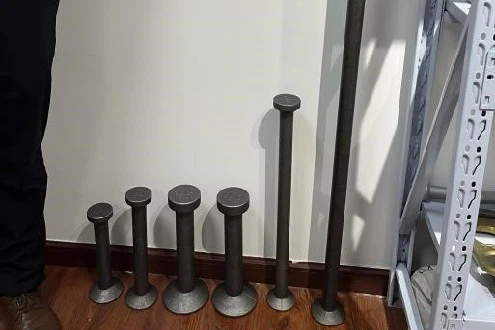

Various Types of Spherical Head Anchors

Various Types of Spherical Head Anchors

As shown in the picture are Sandblasted Spherical Head Anchors with different lengths and loads, which can be customized for you according to your needs. Wide range of applications, such as housing, bridges, comprehensive pipeline corridors, rail transportation, etc.

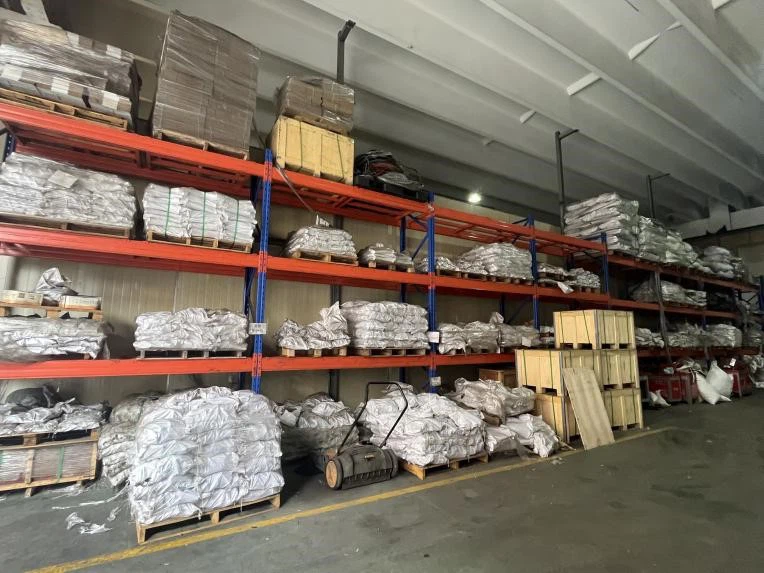

Warehouse





Warehouse



FAQ





Q: What is the difference between Lifting Pin Anchors and Eye Anchors? How to choose between them?

A: 1)Structural differences: Lifting Pin Anchors connect to external lifting devices via their head, while Eye Anchors allow direct hooking of slings. 2)Applicable scenarios: Lifting Pin Anchors: Suitable for lifting requiring high precision, concealment, or frequent disassembly (e.g., formwork support, equipment installation). Eye Anchors: Ideal for simple hooking needs or one-time lifting (e.g., prefabricated wall panels). Selection advice: Base your choice on lifting frequency, force direction (whether multi-angle adjustment is needed), and aesthetic requirements.

Q: Can Lifting Pin Anchors withstand lateral tension?

A: Limitations: Lifting Pin Anchors have weak resistance to lateral forces, as they are designed to primarily bear axial tension. Solutions: If lateral forces exist, add shear-resistant reinforcement bars or switch to lateral force-resistant structures like Eye Anchors.

Q: During lifting, if the head of a lifting anchor fractures, what are the possible causes?

A: Common causes: 1)Overloading or insufficient safety factor. 2)Material defects (e.g., internal cracks, corrosion). 3)Size mismatch between the lifting device and the anchor head, causing stress concentration.
