Your Professional Threaded Socket System Supplier
Our goal is to be your true partner in Threaded Socket System field in China. U STRONG COMPANY is determined to provide safe, reliable and affordable lifting, connecting and magnetic fixing solutions for precast component factories around the world. Our team has served more than one thousand prefabricated component factories in China with high-quality magnetic fixing products, and has a deep understanding of the production and applications of prefabricated components.
-
![Flat End Lifting Sockets]()
Flat End Lifting SocketsThe flat end lifting socket is a connecting device for lifting and pre-buried connecting pipes.view more -
![Flat End Fixing Sockets with Cross Pin]()
Flat End Fixing Sockets with Cross PinIn the field of precast concrete, a Tubular Lifting Sockets with Cross Pin is a specialized tool or component used for connecting, fixing, or installing precast elements. They are typically employed to create strong connections between...view more -
![Flat Plate Lifting Socket]()
Flat Plate Lifting SocketA Precast Concrete Flat Plate Lifting Socket is a type of lifting anchor used in precast concrete elements to facilitate safe and efficient handling, transportation, and installation. These sockets are embedded into the concrete during...view more -
![Angled Fixing Socket]()
Angled Fixing SocketAn angled fixing socket in precast concrete is a specialized component used to facilitate the connection between precast concrete elements. These sockets are typically embedded into the concrete during the casting process and provide a...view more -
![Short Wavy Tailed Sockets]()
Short Wavy Tailed SocketsShort Wavy Tail Lifting Sockets in precast concrete are specialized anchoring components used for connecting and lifting precast concrete elements. These sockets are characterized by their short length and corrugated tail, which...view more -
![Magnetic Nailing Plates]()
Magnetic Nailing PlatesThreaded Bushing Magnets are specially developed and designed for fixing all kinds of pre-embedded parts in PC components. When producing precast concrete components, it is necessary to leave all kinds of switch holes and pipeline...view more -
![Solid Rod Fixing Sockets]()
Solid Rod Fixing SocketsA Solid Rod Fixing Sockets With Crosshole applied to precast concrete members is a connection device specially designed for the lifting and pre-installation of precast concrete members. It is usually embedded in the precast element as a...view more -
![Long Wavy Tailed Sockets]()
Long Wavy Tailed SocketsThe long wavy tail anchor is a type of anchoring device used in construction engineering, typically for the lifting and embedding of concrete components.view more -
![Tubular Lifting Sockets with Cross Pin]()
Tubular Lifting Sockets with Cross PinTubular lifting sockets with cross pin are widely used in the field of prefabricated building components. Designed to safely lift and transport heavy loads, such as precast concrete elements, the cross-pin mechanism ensures a reliable...view more -
![Lifting Loops]()
Lifting LoopsThreaded lifting loop are devices used for lifting, hoisting, and towing operations, primarily composed of wire ropes, end fittings, and fixing devices. They are widely used in the construction industry and are an indispensable...view more -
![Lifting Eyes]()
Lifting EyesThe swivel hoist ring is a connecting device used for lifting and hoisting operations, featuring multi-directional rotation capabilities that allow for free angle adjustment during the hoisting process, making it suitable for complex...view more
Why Choose Us
Our product
The main products are embedded parts and magnetic products, which can be divided into five categories: Hangers, connections, fixings, molds, and other auxiliary materials.
Quality certification
Our products are rigorously certified to internationally recognized quality standards such as ISO and industry-specific certifications.
Our service
Our company insists on being customer-centric and service-oriented, and is committed to providing every customer with the best and most considerate service. Ustrong 's strong sales and service team will escort your products.
Fast delivery
Our company ensures fast delivery of products through optimized supply chain management, consistently meeting tight deadlines while maintaining high quality standards.
The Threaded Socket System produced by our company mainly include the following types:

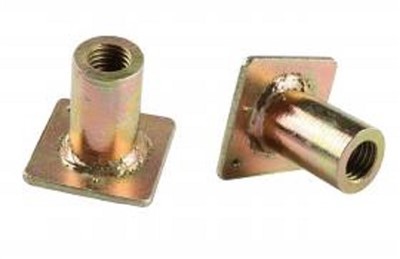

Flat Plate Lifting Socket
Advantages of Flat Plate Lifting Socket
Embedment
The socket is embedded into the precast concrete element during casting, ensuring a strong and durable connection.
Load capacity
They are designed to handle specific load capacities, which must be carefully calculated based on the weight of the precast element and the lifting conditions.
Corrosion resistance
Often made from galvanized or stainless steel to resist corrosion and ensure longevity.
Ease of use
Designed for quick and secure attachment of lifting equipment, reducing setup time during construction.
Applications of Flat Plate Lifting Socket
Walls
Used in precast wall panels for vertical lifting and installation.
Columns
Embedded in precast columns for lifting and positioning.
Beams
Installed in precast beams for handling and placement.
Slabs
Used in hollow core slabs, double tees, or other precast slab elements.
Product Description
|
Manufacturing Process |
Laser cutting, CNC machining, stamping, bending, punching, threading, welding, polishing, tapping, riveting, assembly. |
|
Material |
Stainless steel, carbon steel, copper, aluminium, brass, iron |
|
Surface Treatment |
Galvanized(hot-dip, zinc-plated, nickel-plated, chrome-plated, silver-plated),Powder coating, Enameled, polishing(mirror polishing, electrolytic polishing),Brushing, sand blasting, chemical etching, passivation treatment, etc. |
|
Tolerance |
ISO standard |
|
Package |
Plastic film+ carton box+ plywood case/pallet |
|
Application |
Auto parts, Fence and gate parts, Stamping parts, Bracket and Rack, Spare parts for machines, Electric power fitting products |
|
Quality Control |
Conducted by ISO9001 |
|
Inspection |
Incoming Quality Control, Process Quality Control,Final Quality Control,Out going Quality Control |
Product Specification
|
Item |
Value |
|
After-sale Service |
Online technical support, Onsite Installation, Onsite Training |
|
Project Solution Capability |
Graphic design, 3D model design, total solution for projects |
|
Application |
Walkway |
|
Design Style |
Contemporary |
|
Material |
Steel |
|
Feature |
Anti-Corrosion |
|
Warranty |
1 Year |
|
Shape |
Square |
|
Weight |
0.045 |
|
Chemical Composition |
Steel |
|
Length |
Customized |
|
Alloy Or Not |
Non-Alloy |
|
Secondary Or Not |
Non-secondary |
|
Brand Name |
SMPRE |
|
Model Number |
SFS |
|
Color |
Golden |
|
Capacity |
0.5T -12.5T |
|
Certificate |
ISO9001:2015/CE |
|
Standard |
VDI/BV-BS 6205 |
|
Filler |
PP bag, wooden frame box |
|
Serve |
OEM \ ODM |
Delivery
|
Selling units |
Single item |
|
Single package size |
50X40X30 cm |
|
Single gross weight |
0.045 kg |
Lead Time
|
Quantity (pieces) |
1 - 10000 |
> 10000 |
|
Lead time (days) |
15 |
To be negotiated |
Packaging & Shipping
Lifting Loops
High strength
Wire ropes possess extremely high tensile strength, enabling them to withstand heavy loads.
Flexibility
Wire ropes have excellent bending performance, making them suitable for complex working conditions.
Wear resistance
The surface is specially treated to resist wear and corrosion.
Safety
End fittings and fixing devices ensure safe and reliable hoisting operations.
Long service life
Under normal use and maintenance conditions, wire rope lifting loop have a long service life.
Precast concrete construction
Lifting loops are widely used in the lifting of precast concrete slabs, beams, and panels. They offer a secure connection between the precast products and lifting machines for correct positioning in building and infrastructure construction.
Manufacturing and heavy machinery
Industrial lifting loops are applied to lift heavy machineries, raw materials, and pre-fabricated parts. With their high load-carrying capacity and abrasion resistance, they are ideal for industrial lifts.
Transport and logistics
Lifting loops are applied in safe carrying of cargo, mainly in ports, shipping terminals, and warehouses. They are used to secure loads to avoid shifting during transportation, thereby eliminating the risk of damage and accidents during transport.
Bridge and infrastructure construction
Lifting loops are applied to construct huge infrastructures such as bridges, tunnels, and highway construction to lift precast units in dangerous working conditions.
Product Description
|
Product Name |
Lifting Threaded |
|
|
Place of Origin |
China |
|
|
Condition |
New |
|
|
Technical Date |
Material |
Stainless Steel, Alloy Steel |
|
Thread |
M12, M16, M20, M24, M30, M36, M42, M52 |
|
|
SWL (kg) |
500 - 12500 |
|
|
Overall Height (mm) |
155 - 550 |
|
|
Wire Rope Dia. (mm) |
6 - 26 |
|
|
Load Capacity |
Various depending on application |
|
|
|
Material Certificate |
|
|
Breaking Strength Test |
||
|
Certificates |
With CE&ISO 9001 |
|
Product Specification
|
Product Name |
Thread Diameter (M/Rd)mm |
Wire Diametermm |
Safe Working Load KG |
Safe Equal Times |
|
Lifting Loops |
8 |
6 |
800 |
≥4 |
|
12 |
7 |
1200 |
||
|
16 |
8 |
1600 |
||
|
20 |
9 |
2000 |
||
|
25 |
10 |
2500 |
||
|
40 |
12 |
4000 |
||
|
52 |
14 |
5200 |
||
|
63 |
16 |
6300 |
||
|
80 |
18 |
8000 |
||
|
100 |
20 |
100000 |
||
|
125 |
22 |
125000 |
||
|
160 |
26 |
160000 |
||
|
200 |
28 |
200000 |
||
|
250 |
32 |
250000 |
Delivery
|
Selling units |
Single item |
|
Single package size |
10X3X4 cm |
|
Single gross weight |
0.200 kg |
Lead Time
|
Quantity (pieces) |
1 - 10000 |
> 10000 |
|
Lead time (days) |
15 |
To be negotiated |
Packaging & Shipping
FAQ
We're professional threaded socket system manufacturers and suppliers in China, specialized in providing high quality customized service. We warmly welcome you to wholesale threaded socket system in stock here from our factory.
